Phase Shifter Line Stretcher

Waveguide RF Phase Shifters / Line Stretchers

Waveguide Phase Shifters and Line Stretchers

Narda-MITEQ manufactures a wide variety of low power waveguide phase shifters and high power waveguide phase shifters to meet your design specifications.

Our waveguide phase shifters have a minimum phase adjustment from 0-360 degrees with low insertion loss and low VSWR for waveguide sizes from WR28 thru WR137.

For more information feel free to call us and discuss your needs with one of our design engineers.

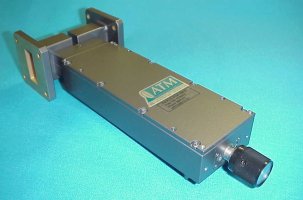

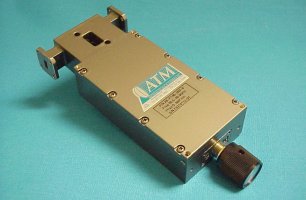

Waveguide Phase Shifters - Line Stretchers
Waveguide Phase Shifters and Line Stretchers
Waveguide Phase Shifters and Line Stretchers
Waveguide Phase Shifters and Line Stretchers
Waveguide Phase Shifters and Line Stretchers
WG
Size		 Freq.
(GHz)		 Model No.* Min. Phase
Adj (deg.)		 Insert
Loss		 VSWR
Max.		 RF Power
CW Max		 Standard
Flange Type		 Outline
Dwgs
WR137 5.85 - 8.20 137-P150-360 0-360° 0.9 1.5 100 CPR137F
WR112 7.05 - 10.0 112-P150-360 0-360° 1.0 1.5 100 UG 138/U
WR102 7.00 - 11.0 102-P150-360 0-360° 1.0 1.6 100 MIL-F-3922/70-014
WR90 8.20 - 12.4 90-P150-360 0-360° 1.0 1.6 100 UG 135/U Dwg
WR75 10.0 - 15.0 75-P150-360 0-360° 1.25 1.9 100 MIL-F-3922/70-017 Dwg
WR62 12.4 - 18.0 62-P140-360 0-360° 1.25 1.9 100 UG 1665/U
WR51 15.0 - 22.0 51-P140-360 0-360° 1.7 1.9 100 MIL-F-3922/70-024
WR42 18.0 - 26.5 42-P140-360 0-360° 1.9 2.0 75 UG 597/U
WR34 22.0 - 33.0 34-P140-360 0-360° 2.0 2.0 50 UG 153/U
WR28 26.5 - 40.0 28-P140-360 0-360° 2.6 2.20 50 UG 599/U Dwg

* The flange types shown above are the standard type for waveguide size ordered.
See Narda-MITEQ Standard Flange Details page for more information.
