Crossguide Directional Dual Arm

Crossguide Directional Couplers - Dual Arm

Dual Arm Crossguide Waveguide Couplers

Narda-MITEQ manufactures dual arm waveguide crossguide directional couplers covering a wide frequency range in either brass or aluminum.

This dual arm cross guide directional coupler covers the full waveguide frequency and is available in either aluminum or copper/brass construction. Single arm cross guide couplers are also available.

Models are available with standard coupling of 30db, 40db or 50db, however other options are available upon request. Pressure sealed dual arm cross guide directional couplers are also available for microwave applications that require sealed systems.

Multiple flange and Coaxial connector types and configurations are available. For more information feel free to call us and discuss your needs with one of our design engineers.

TYPICAL SPECIFICATIONS
DUAL ARM CROSSGUIDE DIRECTIONAL COUPLERS
  • Full waveguide frequency range
  • Single Arm model also available
  • Available in Aluminum or Copper/Brass
  • Narda-MITEQ's 300 series typically handles the full guide rating.  All other series typically handle the guide rating in the forward direction.
  • Coupling: 30, 40, or 50dB (other values available, consult factory for details)
  • Internal termination rated at 2 watts.  In the reverse direction or when used as an injector the internal termination shouldn't see more than 2 watts CW

Electrical
Nominal Coupling: +/- 0.5dB
Frequency Sensitivity: +/- 1.00dB max.
Directivity: 16dB min., 20dB typical
VSWR  Waveguide: 1.05 max.  Coax: 1.25 max.
Mechanical
Construction: Aluminum or Brass/Copper per order
Connectors: Stainless Steel
Finish: Unique corrosion resistant 316 stainless steel epoxy coating IAW MIL-F-14072
Applicable Mil-Specs
General:
Product Specific:
Options
Pressure Sealed Units: Add "/PT" to model number.
Example P/N: 430-302A-20F-20R-2-2
Sealed P/N: 430-302A-20F-20R-2-2/PT
Note: Pressure sealed units will hold 15 psi assuming all waveguide and coax ports are mated and sealed.



Dual Crossguide Directional Couplers - 2 WG, 2 Coax SMA (F) Ports

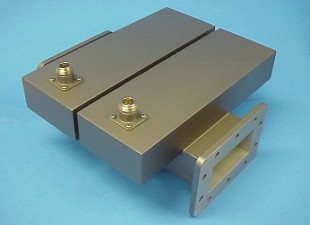

Dual Arm Crossguide Waveguide Directional Coupler - 2 WG Ports, 2 Coax SMA (F) Ports



Dual Arm Crossguide Directional Waveguide Couplers - 2 WG Ports, 2 Coax SMA (F) Ports

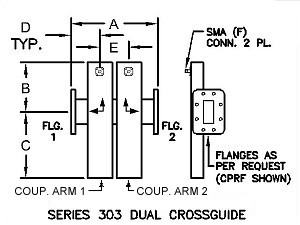

The above illustration shows Fwd coupling at Arm 1,
Rev. coupling at Arm 2
WG Size Freq GHz Standard
Model No.*		 Dim A
(Inches)		 Dim B
(Inches)		 Dim C
(Inches)		 Dim D
(Inches)		 Dim E
(Inches)
WR430 1.70 - 2.60 430-303A-dBF-dBR-2-2 12.00 5.00 8.00 3.38 5.25
WR284 2.60 - 3.95 284-303A-dBF-dBR-6-6 8.75 3.75 5.00 2.75 3.25
WR229 3.30 - 4.90 229-303B-dBF-dBR-2-2 7.50 3.50 4.75 2.42 2.67
WR187 3.95 - 5.85 187-303A-dBF-dBR-6-6 6.75 3.25 4.50 2.25 2.25
WR159 4.90 - 7.05 159-303B-dBF-dBR-2-2 6.13 3.00 4.00 2.08 1.97
WR137 5.85 - 8.20 137-303B-dBF-dBR-2-2 6.00 3.00 4.00 1.75 1.75
WR112 7.05 - 10.0 112-303B-dBF-dBR-6-6 4.75 2.10 3.00 1.63 1.50
WR90 8.20 - 12.4 90-303A-dBF-dBR-6-6 4.25 2.00 2.75 1.50 1.25
WR75 10.0 - 15.0 75-303B-dBF-dBR-6-6 4.00 1.87 2.50 1.45 1.10
WR62 12.4 - 18.0 62-303B-dBF-dBR-6-6 3.75 1.75 2.38 1.33 1.10
WR51 15.0 - 22.0 51-303B-dBF-dBR-6-6 3.50 1.50 2.25 1.20 1.10
WR42 18.0 - 26.5 42-303B-dBF-dBR-6-6*** 3.25 1.10 1.50 1.08 1.10
WR34 22.0 - 33.0 34-303B-dBF-dBR-6-6*** 3.00 1.10 1.50 1.08 1.10
WR28 26.5 - 40.0 28-303B-dBF-dBR-6-6*** 4.00 1.00 2.15 1.00 2.00
Ordering Information
Dual Arm Crossguide Couplers
2 WG & 2 SMA Coax
 WR -Mod M -dB Dir -dB Dir -F1 -F2
Example part number:  90 -303 A -30 F -30 R -6 -6
Waveguide Size: (WR)
WR28 thru WR430 available
Basic Model No.: (-Mod)
Material (M): A=Aluminum, B=Copper/Brass
Arm 1 Coupling Value (-dB) **
30, 40, & 50 dB Standard
Arm 1 Coupling Direction (Dir)
F=Forward, R=Reverse. Reverse Direction is Standard
Arm 2 Coupling Value (-dB) **
30, 40, & 50 dB Standard
Arm 2 Coupling Direction (Dir)
F=Forward, R=Reverse. Reverse Direction is Standard
Flange 1 (-F1): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
Flange 2 (-F2): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
See Narda-MITEQ Standard Flange page for more info.

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system to the left.

** Insert desired coupling value (30, 40 or 50dB) where dB is listed in the model number.

*** These units are supplied with 2.9mm (K-type) connectors - square flange

Standard models have a coupling configuration of: Forward Coupling at the Coax port on arm 1 (see diagram above) and Reverse coupling at the Coax port on arm 2.  However, These models can easily be altered to accommodate your needs by using the Model # code system to the left.

Option: Add /PT to part number for pressure sealed unit to 15 psi.



Dual Crossguide Directional Couplers - 2 WG, 2 Coax Type-N (F) Ports

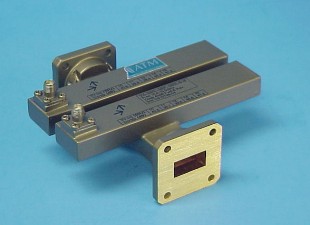

Dual Crossguide Directional Couplers - 2 WG Ports, 2 Coax Type-N (F) Ports

Dual Crossguide Directional Couplers - 2 WG Ports - 2 Coax Type-N (F) Ports

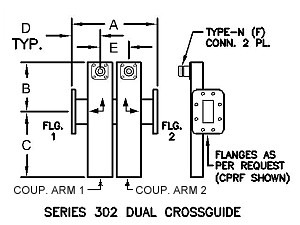

The above illustration shows Fwd coupling at Arm 1,
