Arc Detector

Ka-Band Arc Detectors For Waveguide

Waveguide Arc Detectors For Ka-Band

Narda-MITEQ manufactures Ka-Band Waveguide Arc Detectors covering WR51 thru WR28 for Rectangular Waveguides, with multiple flange configurations available.  Ka-Band Waveguide Arc Detectors are used to detect arcs inside high power waveguide systems.

For more information call us and discuss your Arc Detector requirements with one of our design engineers.

 Ka-Band Waveguide Arc Detectors

Narda-MITEQ's series of Ka-Band Arc Detectors are opto-electric devices which detect visible arcs in high-power microwave waveguides.  They are normally mounted between the output flange of the microwave source and the transmission line in a 90 degree E-plane bend configuration. Other configurations may be manufactured upon special request. Narda-MITEQ offers Arc Detectors for Ka-Band in waveguide sizes ranging from WR28 thru WR51.  Please call us and discuss your needs with one of our design engineers.

How Narda-MITEQ Waveguide Arc Detectors for Ka-Band work electrically:

  • In the base model of Narda-MITEQ's Arc Detector, +15 VDC at 25mA is applied to pin A to arm the device.  When armed, the arc detector will develop TTL 1 (2.4 - 5.0 volts, 3.5 volts typical) on the output, Pin D.  In response to a visible arc in the waveguide facing the detector device (input flange 1), Pin D will have an output of TTL 0 ( 0-0.8 volts ).  Pin D will remain at this level until the arc in the waveguide is no longer present.
  • The Arc will automatically re-arm when the waveguide is no longer illuminated.
  • Pins E and F (case ground) are ground connections.

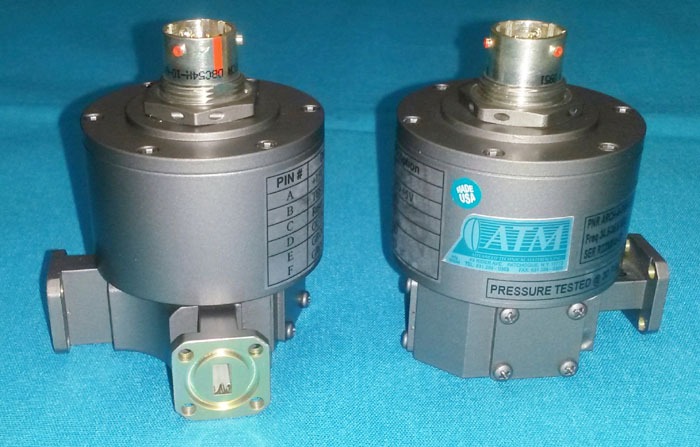

Ka-Band Waveguide Arc Detectors - E and H Plane
Ka-Band Waveguide Arc Detectors - E and H Plane
 GENERAL SPECIFICATIONS
(KA-BAND WAVEGUIDE ARC DETECTOR STANDARD OPTIONS)
 Input Power: 15+ VDC at 25mA
 Pressure Sealed to: 30 PSI
 Output Voltage
 		 Armed: TTL 1
(2.4 - 5.0 volts, 3.5 volts typical)
Fault/Fired: TTL 0
(0 - 0.8 volts)
 Response Time: less than 10 µsec.

Arc Detector Options:

  • A - Input Voltage:  Input voltage at Pin A is +28VDC at 40 mA, Output voltage TTL 1(2.4 - 5.0 volts, 3.5 volts typical)
  • B - Latching Reset Capability (+5VDC):  After being triggered by an arc, the output will remain at less than one volt until the Arc Detector is manually reset.  This is accomplished by bringing Pin C to +5VDC (TTL) momentarily, then returned to case ground.
  • BB - Latching Reset Capability (Open Circuit):  After being triggered by an arc, the output will remain at less than one volt until the Arc Detector is manually reset.  This is accomplished by removing pin C from case ground to an "open circuit" momentarily, then returned to case ground.
  • C - Self test:  To test the Arc Detector's triggering/latching ability, +5 VDC is applied to pin B.  Current required is 20mA
  • D - Output Voltage:  Output voltage is +15 VDC.  This option requires choosing option A, +28 VDC input,  The fired voltage is less than 1 volt.

Note: For any of the options shown above add the appropriate letter to the end of the model number.  It is possible to add more than one option. Example P/N:  42ka-ARCE-A-6-6 becomes: 42ka-ARCE-A-6-6/AB when options A & B are desired.



Ka-Band Waveguide Arc Detector - Standard Models
WG Size Freq. (GHz) VSWR
(max)		 Insertion Loss
(max)		 Peak Power
(max)		 Model No.* Outline
Drawing
WR51 18.3 - 20.2 1.10 0.05 200 KW 51ka-ARCE-A-6-6 Dwg
WR42 18.3 - 20.2 1.10 0.05 150 KW 42ka-ARCE-A-6-6 Dwg
WR34 27.5 - 31.0 1.10 0.05 100 KW 34ka-ARCE-A-6-6 Dwg
WR28 27.5 - 31.0 1.10 0.05 50 KW 28ka-ARCE-A-6-6 Dwg
Ordering Information
Ka-Band Waveguide Arc Detector
 WR -Mod -M -F1 -F2 /OPT
Example part number:  42ka -ARCE -A -6 -6 /AB
Waveguide Size: (WR)
WR28 thru WR51 available
Basic Model No.: (-Mod)
ARCE=E-Bend configuration
ARCH=H-Bend configuration
Material (M): A=Aluminum, B=Copper/Brass
Flange 1 (-F1): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke

Flange 2 (-F2): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
See Narda-MITEQ Standard Flange page for more info.

Options (/OP)
A, B, BB, C, D Available
See Arc Detector Options table above. More than one option is permitted.


* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system to the left.

** Bi-Directional Arc Detectors are also available.  These can be supplied on 90º E or H bends or on straight section of waveguide.  The same options as on the units listed are available.
