Phase Shifter Stepper Motor Driven

Coaxial Phase Shifters - Stepper Motor Driven

Stepper Motor Driven Phase Shifters

Narda-MITEQ's Stepper Option offers finer phase adjustment when compared to any other form of automated shaft control.

With a resolution of less than 0.02° phase shift per step @ 1 GHz (or less than 0.35° phase shift per step @ 18GHz) this option offers the most accuracy when controlling one of Narda-MITEQ's phaseshifters.

Narda-MITEQ's stepper motor driven products require the use of a PC, and controllers such as Narda-MITEQ's stepper motor controller model MCMS-003

Pin Out ConfigurationCONNECTOR PIN-OUT DIAGRAM
9-PIN MALE D-SUB (DE-9M)

Pin# Description
1 ØA
2 Ø/A
3 ØB
4 Ø/B
5,6,7,8,9 Not used

For more info see Narda-MITEQ's:
 Manual programming example



STEPPER MOTOR DRIVE OPTION
(Order by adding "-SM24" after the model# of the phaseshifter you are ordering, see below for examples)
Stepper Motor Driven Phase Shifter
Stepper Motor Driven Phaseshifter
Stepper Motor Driven Phase Shifter
Stepper Motor Driven Phase Shifter

STEPPER MOTOR
Narda-MITEQ's 2-phase stepper motor drive can easily be programmed to Increase Phase, or Decrease Phase. 180 RPM max suggested directly coupled to any Narda-MITEQ device in order to prevent damage.  Suggested Input Power is 24 to 48 VDC.  1.5A (Narda-MITEQ supplies a 24 VDC Power supply when the MCSM-003 is ordered).  An internal encoder standard on all models allows finer traceability.  See connector pinout for details.

MOTOR CONTROL CONNECTORS
Units are mounted with male 9-pin D-subminiature (DE-9M) connector for stepper motor power/control.  Refer to D-sub pinout diagram for detail.

RF CONNECTORS
Per phaseshifter model selected; SMA, Type-N, or Type-K (2.92mm)

CONSTRUCTION
Milled aluminum, Chem-film finish.
Standard Models - Stepper Motor Drive Options
Typical Freq. Range Basic Phaseshifter Type Typical Model No. Outline Recommended Speed
From Endpoint To Endpoint (secs)

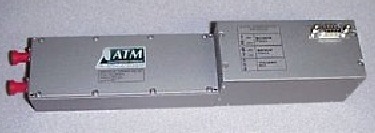

DC-18.6 30°/GHz P1407-SM24 .pdf 3 seconds
DC-18.6 60°/GHz P1507-SM24 .pdf 6 seconds
DC-18.6 90°/GHz P1607-SM24 .pdf 9 seconds

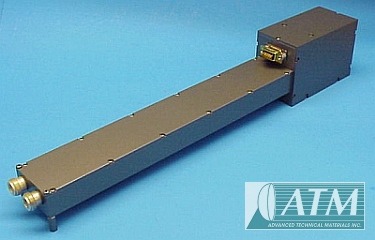

DC-4.3 180°/GHz P1214-SM24 .pdf 18 seconds
DC-2.5 360°/GHz P1103-SM24  .pdf 36 seconds



Ordering Information
Stepper Motor
Drive Phaseshifter

 Mod -Opt
Example part number: P1407 -SM24
Basic Model No:
Add -SM24 for stepper motor drive option

The model above "P1407-SM24" is just one example.  The model number for your stepper motor-driven phaseshifter should be tailored according to base phaseshifter model, and desired options. see Coaxial Phaseshifters.  For more model choices, see Coaxial Phaseshifters.



Narda-MITEQ STEPPER MOTOR CONTROL MODULE
(Narda-MITEQ P/N: MCSM-003) Designed to operate all of Narda-MITEQ's stepper motor-driven phaseshifters and attenuators.
What is supplied with Narda-MITEQ's MCSM-003?
Along with your stepper motorized phase shifter, there will be the following items inside the box:

  1. Stepper motor controller Narda-MITEQ P/N: MCSM-003
  2. RS-422-485 to USB convertor.
  3. +24 DC power supply.
  4. USB drive (see below for details).
  5. USB to Micro USB cable, Cable A.
  6. RS-422-485 ribbon cable, Cable B.
  7. Power cable, power jack to wire connector, Cable C.
  8. Controller to stepper motor cable, D-sub 9 pin connector to IDC header connector, Cable D
  9. Self-switching 28VDC power supply with input of 120VAC-240VAC*

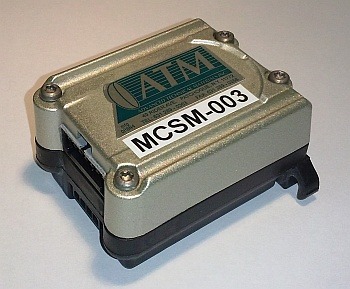

Narda-MITEQ's Stepper Motor Control Module MCSM-003
Narda-MITEQ's Stepper Motor Control Module MCSM-003

Drawing for MCSM-003
The USB drive will come loaded with the following items:
Along with your your stepper motorized phase shifter, there will be the following items inside the box:
  1. Narda-MITEQ test program--this is a short program that should be used to verify that you have installed the software correctly, and that everything is appropriately connected.
  2. General Instruction--this will walk you through how to install the control software, as well as how to run the Narda-MITEQ test program.
  3. Command Instruction--This outlines how to lay out your own program.  This also illustrates the basic instructions you need to know in order to write your own proram.

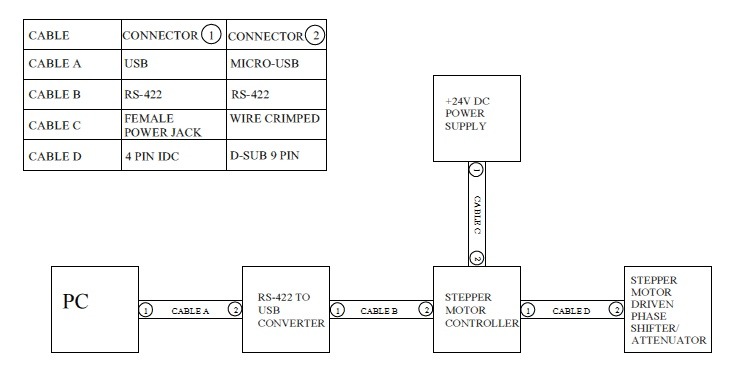

  4. Connection Diagram--This will illustrate how to make the appropriate connections between the PC, Power supply, and Stepper Motor driven unit using the cables provided (See below for Connection Diagram)
  5. IMS Terminal--The software used to control the stepper motor.  This will come in a 32 bit and 64 bit version.
SM Control Diagram
