Attenuators For Coaxial RF Applications

A coaxial attenuator is an electronic device specifically designed to reduce the power of a signal without affecting or reducing the waveform of the signal significantly.

An attenuator works exactly opposite of an amplifier which increases the power of the signal without altering the waveform. Amplifiers provide an increase (or gain) in the power output whereas an attenuator provides a loss of power (or a gain less than 1).

3 Basic Types of Attenuators:

• Fixed Attenuator - Where signal loss is constant and cannot be changed.
• Step Attenuator- Such as a Rotary Step Attenuator which has stops where the signal loss can be altered.
• Continuously Variable Attenuator - Also known as CVA, where the signal loss can be changed using a mechanical adjustment screw, knob or dial.

Coaxial Attenuators:
Fixed Attenuators
Rotary Step Attenuators
Low Frequency Variable Attenuators
Miniature Variable Attenuators
Medium & High Power Attenuators

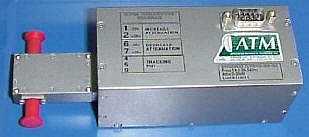

Motor Driven Variable Attenuators

Waveguide:
Waveguide Attenuators

Ka-Band:
Ka-Band Coaxial Attenuators
Ka-Band Waveguide Attenuators

Fixed Attenuators	Rotary Step Attenuators	Low Frequency Variable
Mini Variable Attenuators	Medium & High Power Variable	Motor Driven Variable Attenuators

Narda-MITEQ carries a complete line of coaxial attenuators with 3 types of coaxial connectors: SMA, 2.9mm, or Type N.
